Vortech Supercharger Bearing and Seal Install Tool Kit

Regular price $30.00

Install tools for the DIY Vortech Supercharger rebuilder.

3D printed in 100% infill PLA, these tools have been tested and proven to work (for years) reinstalling bearings and seals in Vortech Superchargers. Designed to be a perfect fit and rated for shop presses.

Tested on Vortech V1, V2, and V3 superchargers. May work on other models using the same parts.

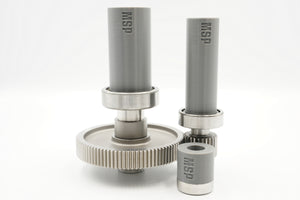

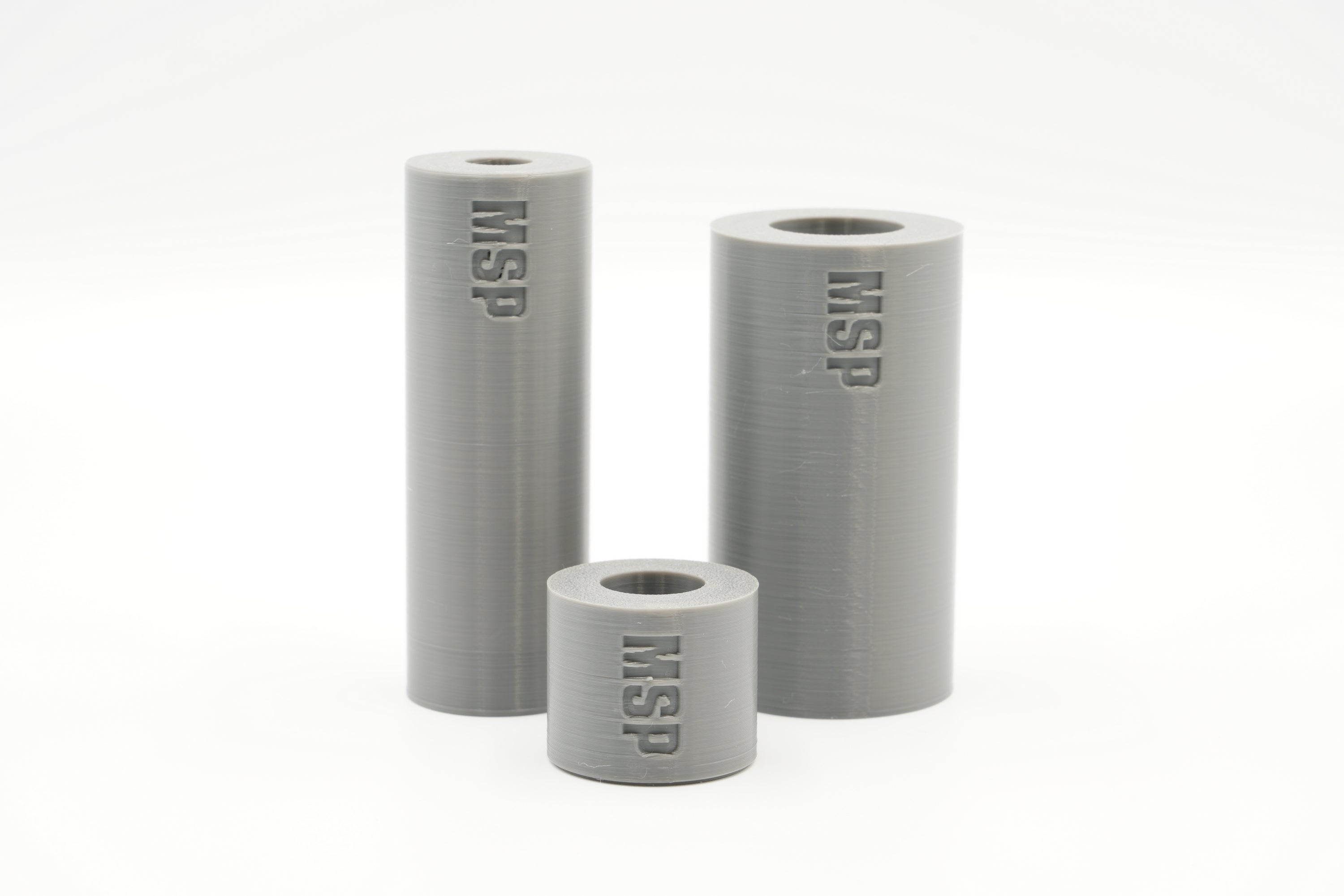

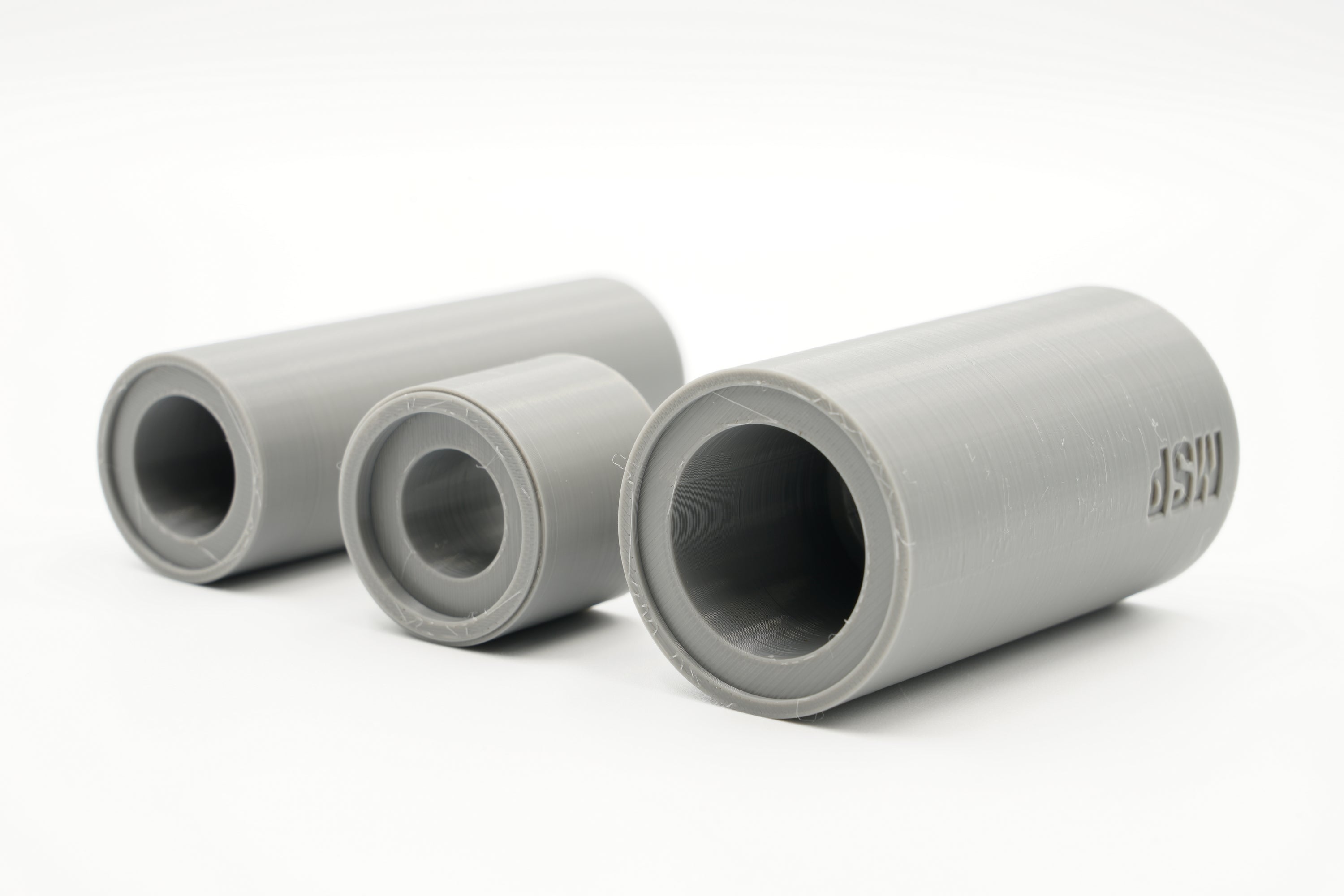

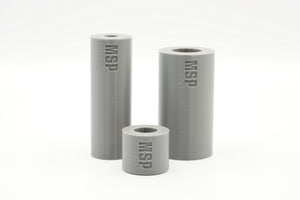

Included
•High Speed Mechanical Seal Install Tool
•High Speed Bearing Install Tool (35mm or 40mm)
•Low Speed Bearing Install Tool

Rebuilding a Vortech Supercharger can be a tedious process without the right tools. You can also do serious damage to the new parts if you do this wrong. These tools were developed in 2022 and a single 3D printed set has lasted for dozens and dozens of superchargers. 3D prints can be extremely durable and strong when used in compression, especially when the print is 100% solid.

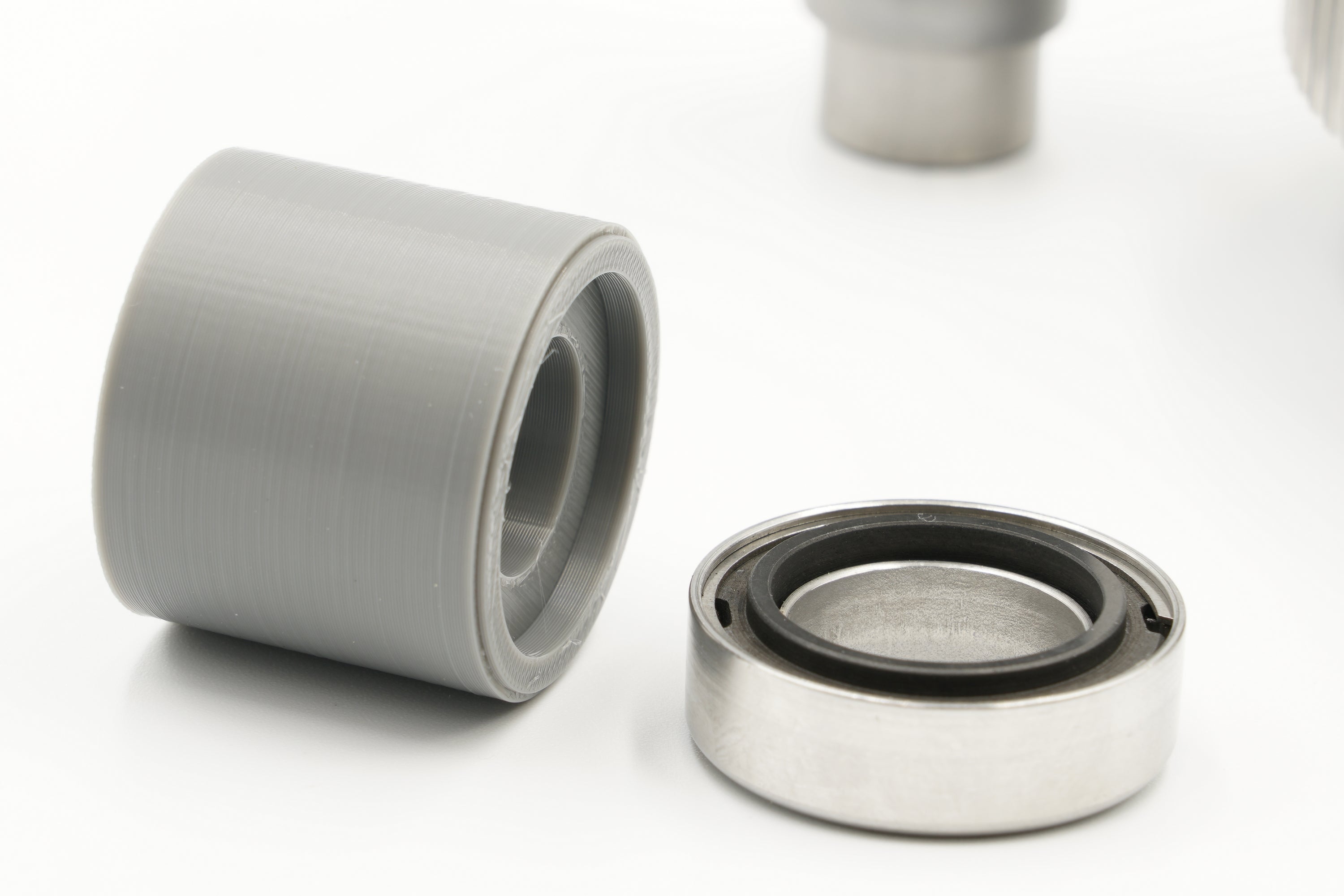

The high speed seal tool is designed for use with OEM seals ONLY. This tool is a PERFECT snap fit into the seal and will allow for a perfect install without putting any pressure on the fragile ceramic seal. The tool is also narrow enough to allow the mechanical seal to be fully pressed below the surface just like original.

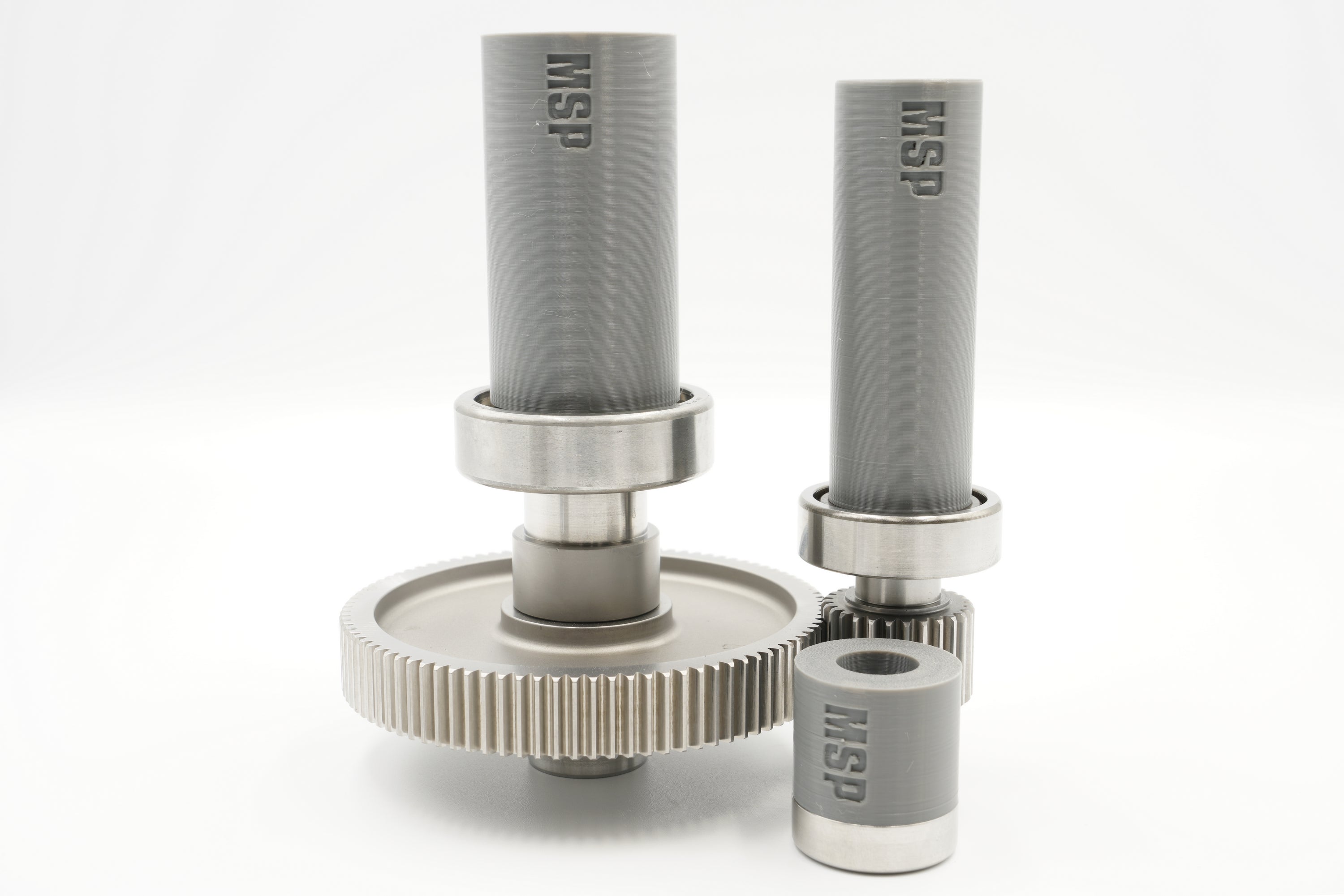

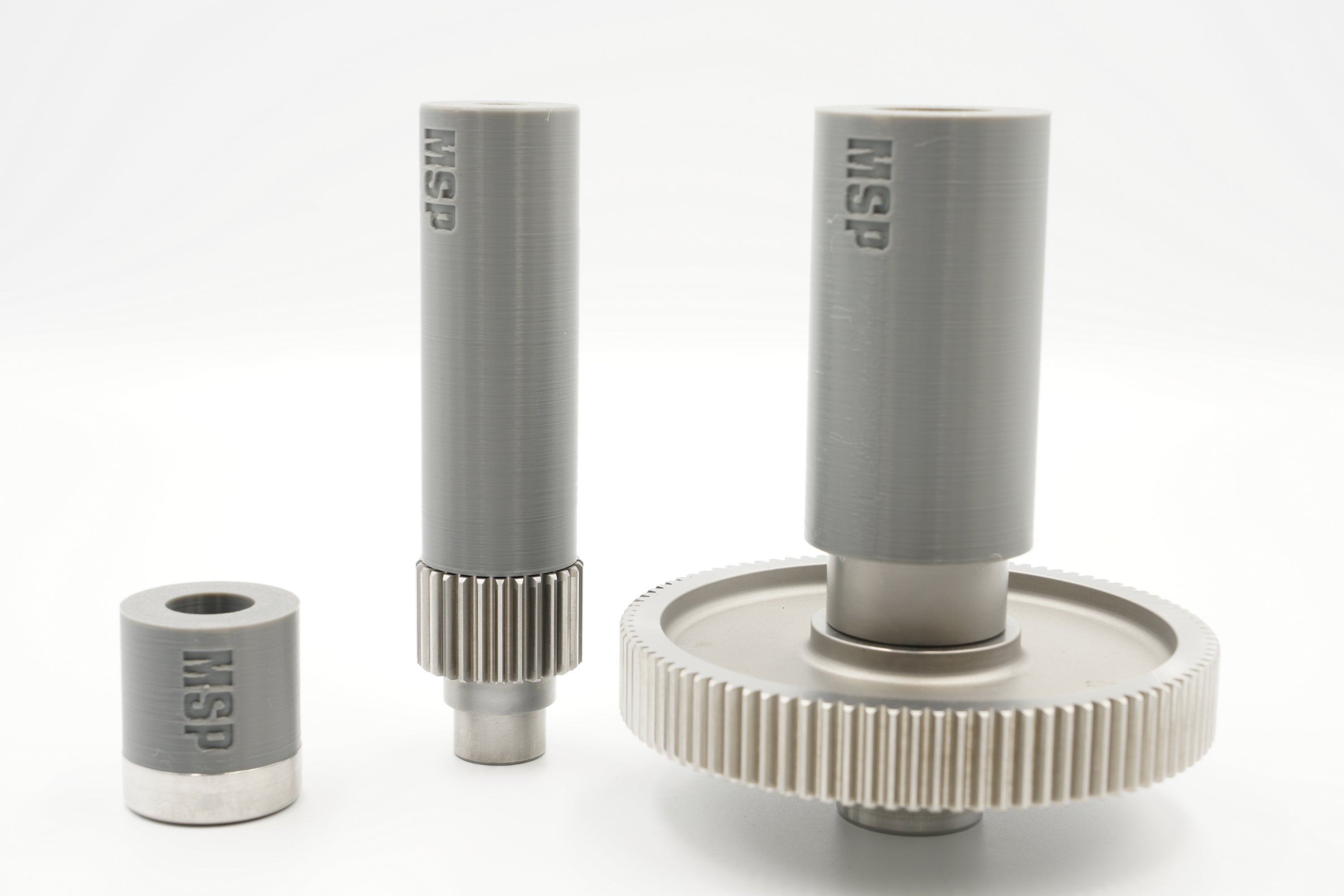

Both high speed and low speed bearing tools are designed to cup and press the inner bearing race only. This is a critical aspect for the high speed bearings which are basically useless if pressed from the outer race.

Please note: These tools must be used on a shop press or arbor press. They are not designed to be hammered on or used by dim witted mechanics. Ensure tools are squarely setup on the desired part and squarely in the press while using.
